Drainage in Cinco Ranch, Katy TX
Cinco Ranch has more drainage variability than any other Katy community we work in. The older sections sit on graded prairie with mature trees and original landscaping; the newer sections are still settling on freshly compacted clay. Both produce drainage problems, just different ones. We've worked across nearly every section of the community and design each system specifically for the lot's section and section history.
We're based in Katy, so Cinco Ranch has been part of our service area since the day we opened. That covers the older sections like Cinco Ranch West and Greenway Village as well as the newer ones south of Westheimer Parkway.
What Drives Cinco Ranch Drainage Issues
The community covers about 8,100 acres and was built out over more than 30 years, so the drainage situation varies block by block. The recurring factors:
- Barker Reservoir watershed: Most of Cinco Ranch drains toward the Barker Reservoir system. The community holds and slowly releases water during major events, which means yard ponding lasts longer than in non-watershed areas.
- Beaumont clay: The native soil absorbs almost nothing. Even with proper grading, water can sit on the surface for 24 to 72 hours after a moderate storm.
- Mature landscaping in older sections: Cinco Ranch West and Greenway Village have 25 to 30-year-old oaks and pecans with root systems that compete with French drain placement.
- Settling in newer sections: Sections built since 2015 are still settling. Lots that drained correctly at closing may develop low spots within 3 to 5 years.
- Cinco Ranch RA design rules: Visible exterior changes require approval. Buried drainage components usually don't, but discharge points and pop-up emitter placement sometimes do.
What We Typically Install in Cinco Ranch
Most Cinco Ranch jobs combine two or three of the following:

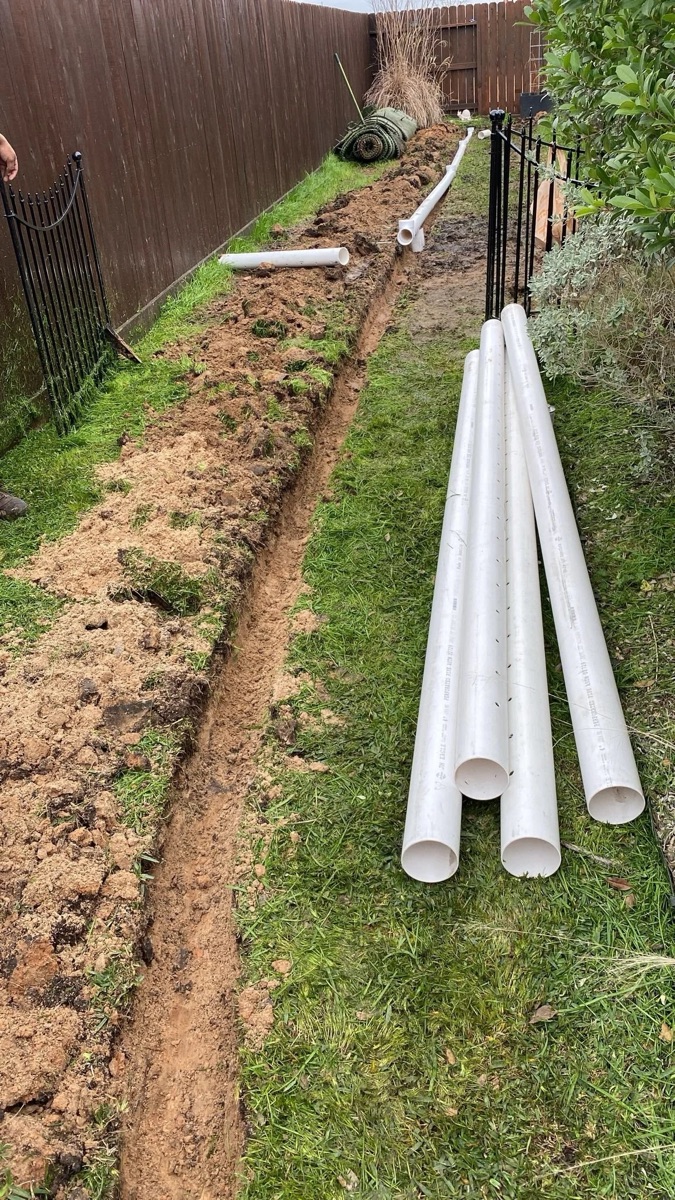

- French drains along the lot's low side or fence line to intercept subsurface water before it reaches the foundation.

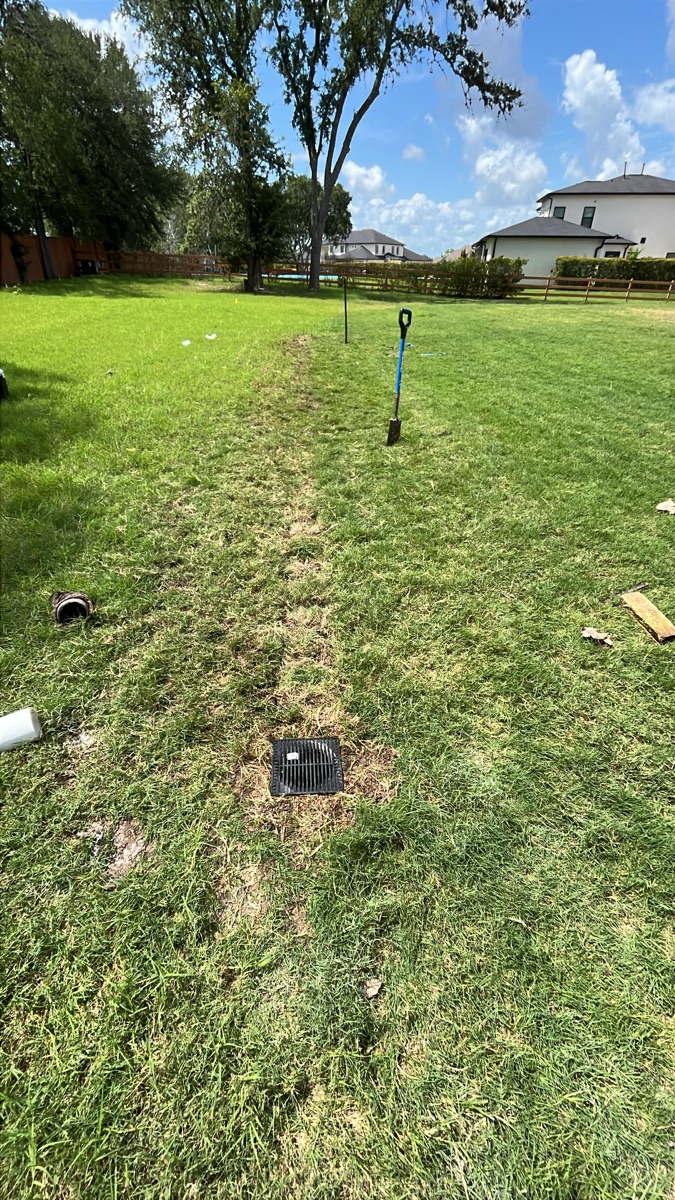

- Catch basins at low points in the lawn where surface water collects after grading didn't quite move it off the property.
- Downspout extensions buried 15 to 20 feet from the foundation. On a typical Cinco Ranch home with 8 to 10 downspouts, this alone fixes most foundation-perimeter ponding.
- Channel drains at driveway edges and pool decks, especially on lots with negative slope back toward the house.
- Pop-up emitters for discharge points that satisfy RA visibility rules.
Older Sections, Aging Original Drainage
A lot of Cinco Ranch drainage is now old enough to fail on its own. Homes in the sections north of Westheimer Parkway went up in the 1990s, and many came with builder-installed corrugated pipe that's been in the ground 25 to 30 years. Corrugated pipe silts up, crushes under driveways, and gets invaded by roots. The mature oaks that make these streets worth living on are exactly what destroys the original drain lines.
On an older lot, the first question is whether the system already in the ground can be saved. Sometimes a cleaning and a couple of repaired sections restores full flow for a fraction of a replacement. When the original pipe is crushed or the layout never made sense, we'll tell you that too, and quote the replacement with the old line's failure points in mind.
The other thing that changes on a 25-year-old lot: the grading isn't what it was at closing. Patios settle. Flowerbeds grow a little taller every time they're re-mulched, and a replaced fence rarely lands exactly on the old line. A drainage plan that worked in 1998 can quietly stop working without a single component breaking, so we walk the entire lot before we design anything.
