Channel Drain Installation in Houston, TX
When water sheets across a driveway, patio, or pool deck during a Houston storm, a French drain isn't the right tool. The problem is surface water, not subsurface. That's where channel drains come in. Set flush into hardscape, they catch runoff at the source and route it before it can pool against the foundation or seep under the slab.
Also called trench drains or linear drains, they're the cleanest fix for driveways, patios, walkways, and pool decks where surface flow is the real issue.
At 713 French Drains, we specialize in professional channel drain installation in Houston, built to fit your landscape and hardscape. Our systems sit flush in your paved surfaces and move surface water off your property fast.
What Is a Channel Drain?
A channel drain (also called a trench drain or linear drain) is a long, narrow trench fitted with a grated cover and connected to an underground drainage pipe. It is installed flush with the surface of driveways, patios, walkways, and other hardscaped areas to collect and redirect water runoff.
Unlike French drains, which handle subsurface groundwater by using perforated pipes buried in gravel trenches, channel drains are specifically designed to capture surface-level water before it has a chance to pool, flood, or cause damage. They are the go-to solution for any paved or flat area where water tends to collect on top of the surface.
How Do Channel Drains Work?
Channel drains operate on a straightforward but highly effective principle. Here is how the system works:
- Water collects on surfaces. Rainwater or irrigation runoff pools on driveways, patios, pool decks, and other flat or paved areas.
- Water flows into the grated opening. The surface is graded so water runs toward the channel drain's grated opening, which sits flush with the ground.
- A sloped trench guides water into the drainage pipe. Inside the channel, a sloped trench carries the collected water into a connected underground drainage pipe.
- The pipe carries water to a discharge point. The drainage pipe moves the water away from your property to a discharge point such as a storm drain, dry well, or safe area of your yard.
The result is a dry, safe surface. Standing water and puddles are gone, and water no longer reaches your garage or foundation.
When Do You Need a Channel Drain?
If you're experiencing any of the following issues around your Houston home, a channel drain may be exactly what you need:
- Water pools on your driveway, walkway, or patio. Standing water on hardscaped surfaces is a clear sign that surface runoff has nowhere to go.
- Your garage floods during heavy rain. Water running down a sloped driveway and into your garage is a common problem, and channel drains solve it.
- Pool decks are unsafe due to standing water. Wet, slippery pool decks are a serious safety hazard for your family and guests.
- Your current drainage system isn't keeping up. Houston's intense rainfall can overwhelm older or undersized drainage systems, and a channel drain adds the capacity you need.
- Water is flowing toward your home's foundation. Surface water moving toward your foundation can lead to cracking, settling, and expensive structural repairs.
How to Install a Channel Drain
Professional channel drain installation takes several key steps so the system performs for years and manages water properly. Here is what the process looks like when you work with 713 French Drains:
Site Assessment
We evaluate your property's grading, water flow patterns, and problem areas to determine the ideal placement and design for your channel drain system.

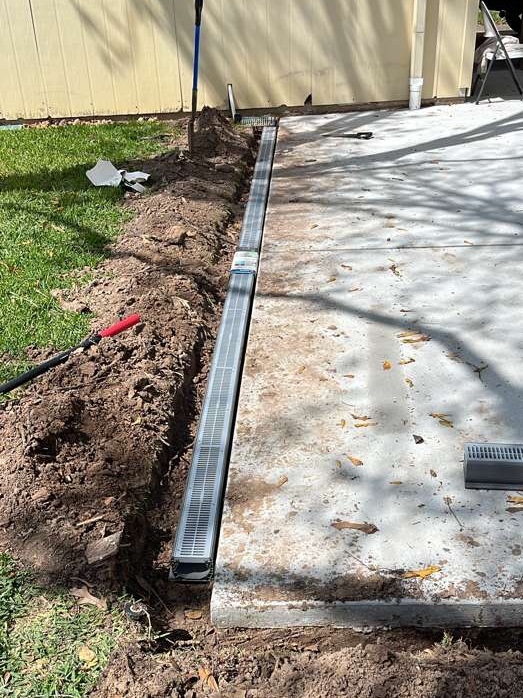

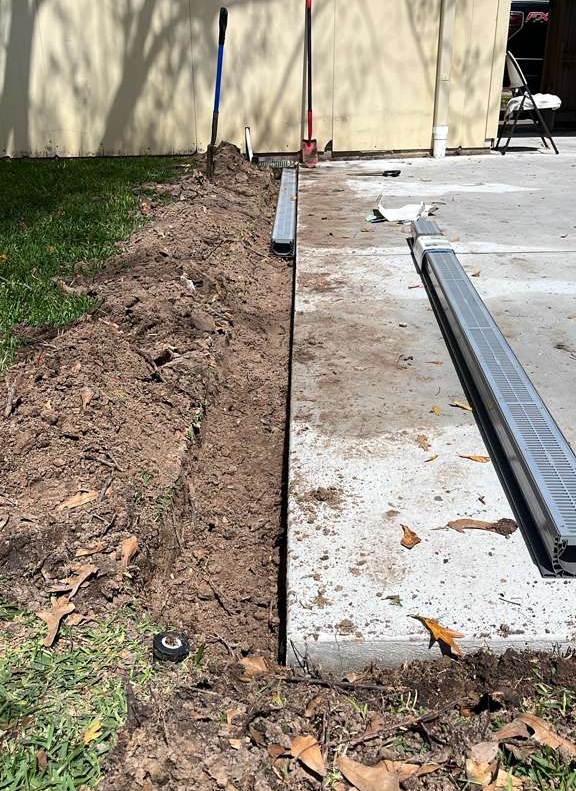

Excavation
We carefully excavate a trench along the planned path at the correct width and depth for the chosen channel system.
Set Slope & Base
A proper slope is set in the trench so water flows by gravity toward the drainage pipe. A compacted gravel or concrete base is laid for stability.
Install Channel System
The channel body is placed into the trench and leveled precisely so the grate sits flush with the surrounding surface.
Secure Grates
Grates are fitted and secured on top of the channel. They let water in, keep debris out, and stand up to foot and vehicle traffic.
Connect to Drainage Pipe
The channel is connected to an underground drainage pipe that carries collected water to a safe discharge point away from your property.
Backfill & Finish
The trench is backfilled and compacted, and the surrounding surface is restored so the drain blends into your driveway, patio, or walkway.
Types of Channel Drains
We offer a variety of channel drain types to suit your property's specific needs and aesthetic preferences:
Standard Residential Channel Drains
Ideal for driveways, patios, and walkways. These are the most common channel drains in Houston homes, and they perform reliably at an affordable price.
Heavy-Duty Channel Drains
Designed for areas with higher load requirements, such as driveways that handle heavy vehicles or commercial-grade applications. Built with stronger materials and reinforced grates.
Decorative Channel Drains
With stylish grate designs in materials like stainless steel or cast iron, decorative drains add visual appeal and give you the same high-performance drainage.
Modular Channel Drain Systems
Pre-engineered, interlocking sections that allow for flexible layouts and easy installation. Perfect for custom configurations and curved paths.
Materials & Options
Choosing the right materials is critical for the durability and longevity of your channel drain system. We work with a range of high-quality materials to match your project's requirements:
Channel Bodies
Available in PVC, HDPE (high-density polyethylene), and polymer concrete. PVC and HDPE are lightweight and cost-effective, while polymer concrete offers superior strength and chemical resistance.

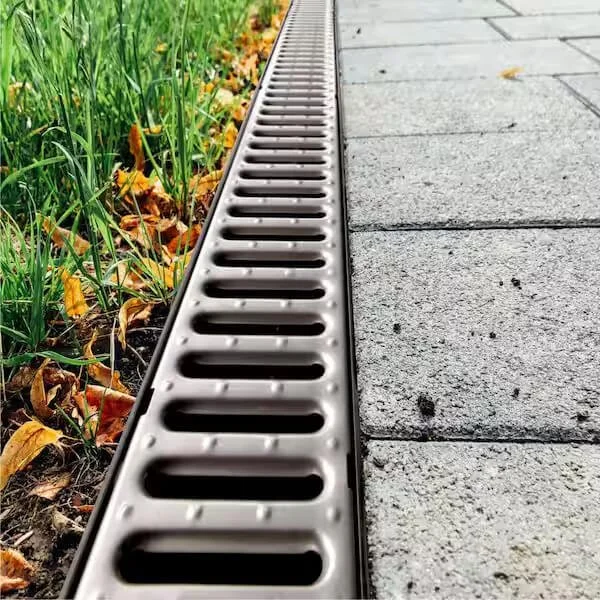

Grates
Options include galvanized steel, ductile iron, stainless steel, and polymer grates. Each offers different levels of load capacity, corrosion resistance, and aesthetic appeal.
Catch Basins
Integrated catch basins can be added at key points in the system to trap sediment and debris before it enters the drainage pipe, reducing maintenance needs.
End Caps & Connectors
End caps seal the channel ends, while connectors join channel sections and link the system to underground pipes for a watertight, complete installation.
Benefits of Channel Drain Installation
Investing in a professionally installed channel drain system offers significant advantages for Houston homeowners:
- Protects your foundation and garage. Channel drains catch surface water before it reaches your home, so you avoid costly foundation damage, basement flooding, and garage water intrusion.
- Stops surface flooding. Your driveways, patios, and walkways stay dry and usable, even during Houston's heaviest rainstorms.
- A clean finish for hardscape. Decorative grates give your driveway or patio a finished edge while fixing the drainage underneath it.
- Cuts slip hazards. Clearing standing water off pool decks, walkways, and driveways lowers the risk of slip-and-fall accidents for your family and guests.
- Adds long-term value. A well-designed drainage system protects your property for years, raises your home value, and cuts future repair costs.
